KAN-Z2
产品类别: 直键开关系列

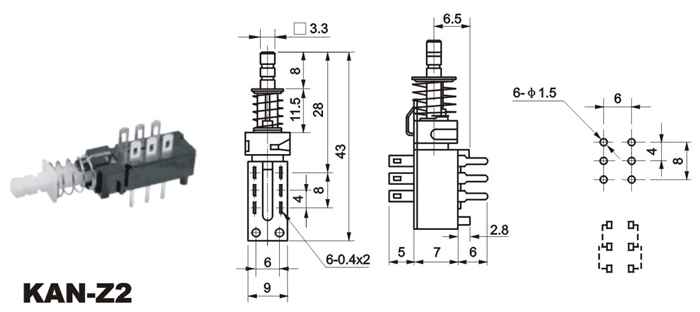

产品名称: KAN-Z2
浏览次数: 89
直键开关系列主要技术指针Specifications of Uni-direction Push-button Switch series
使用温度范围Temperature
-25-55 oC
耐压Withstand Voltage
AC800V(50Hz)/min
额定负荷Rated load
DC30V1A
动作力Actuating Force
2-8N
接触电阻Contact Resistance
<0.02Ω
寿命Life
100000次
绝缘电阻Insulation Resistance
>500MΩ
注:开关锁定形式分自锁和无锁Note: The switch locking form consists of Self-lock and Non-lock
